Equipment

Cutting Edge Wire houses some of the most technologically advanced equipment available on the market today:

Contact Us for a Free Estimate
  • Show All
  • Titan
  • OptiMAX
  • ProtoMAX
  • Fanuc

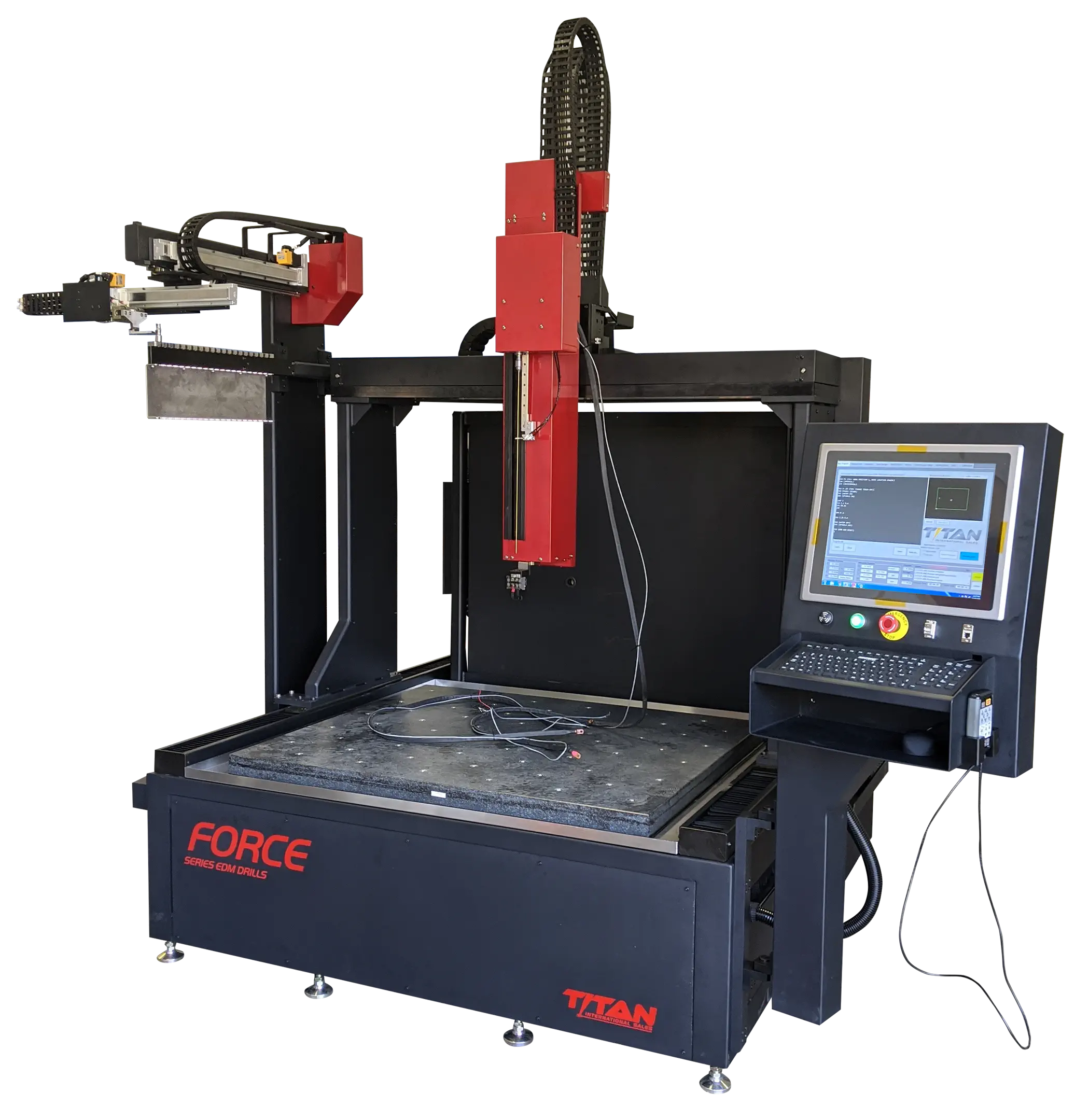

Titan Force 4240

The Titan Force 4240 is a full featured CNC small hole EDM drill. This machine is specially built for large parts requiring larger travels.

  • CNC industrial motion control (up to 8 axis)
  • Automatic electrode/guide changers for automation
  • Built-in filtration/DI system
  • Travel (X, Y, Z): 42″ x 40″ x 40″
  • Max work height of 40″
  • Max work weight of 5,000lbs
  • Complex 6 axis machine available with tilting head and rotary tables: A (tilt head) B (rotary tilt) C (indexing turn)

OptiMAX 60X

The OMAX OptiMAX 60X is the culmination of three decades of engineering expertise and experience, resulting in the world's most advanced waterjet.

  • X-Y Cutting Travel 10' x 5' 2″ (3.04 m x 1.57 m)
  • Z-Axis Travel 12″

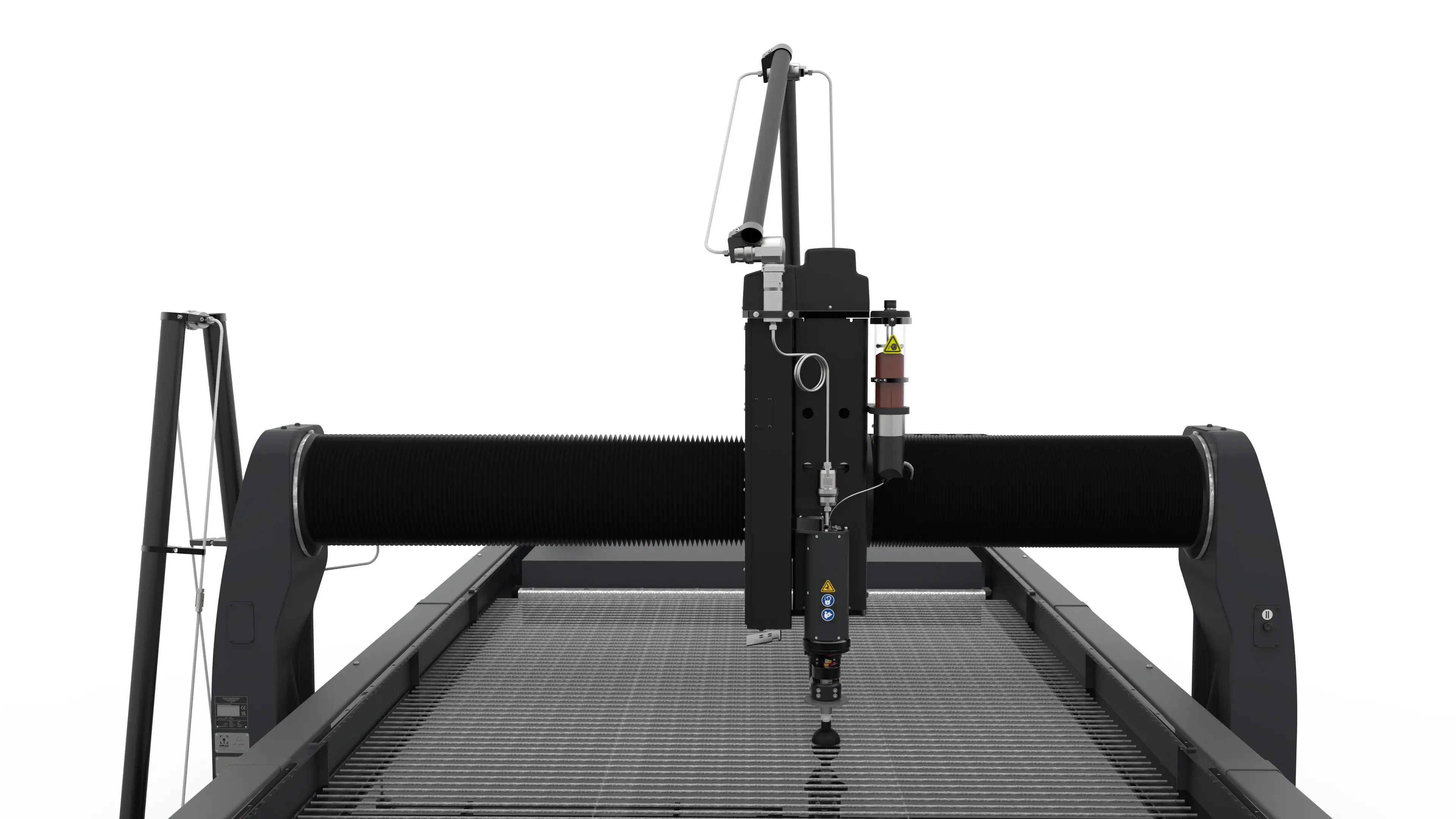

OptiMAX 80X

The pinnacle in high-performance precision abrasive waterjet cutting machining.

  • X-Y Cutting Travel 13' 4″ x 6' 8″
  • Z-Axis Travel 12″

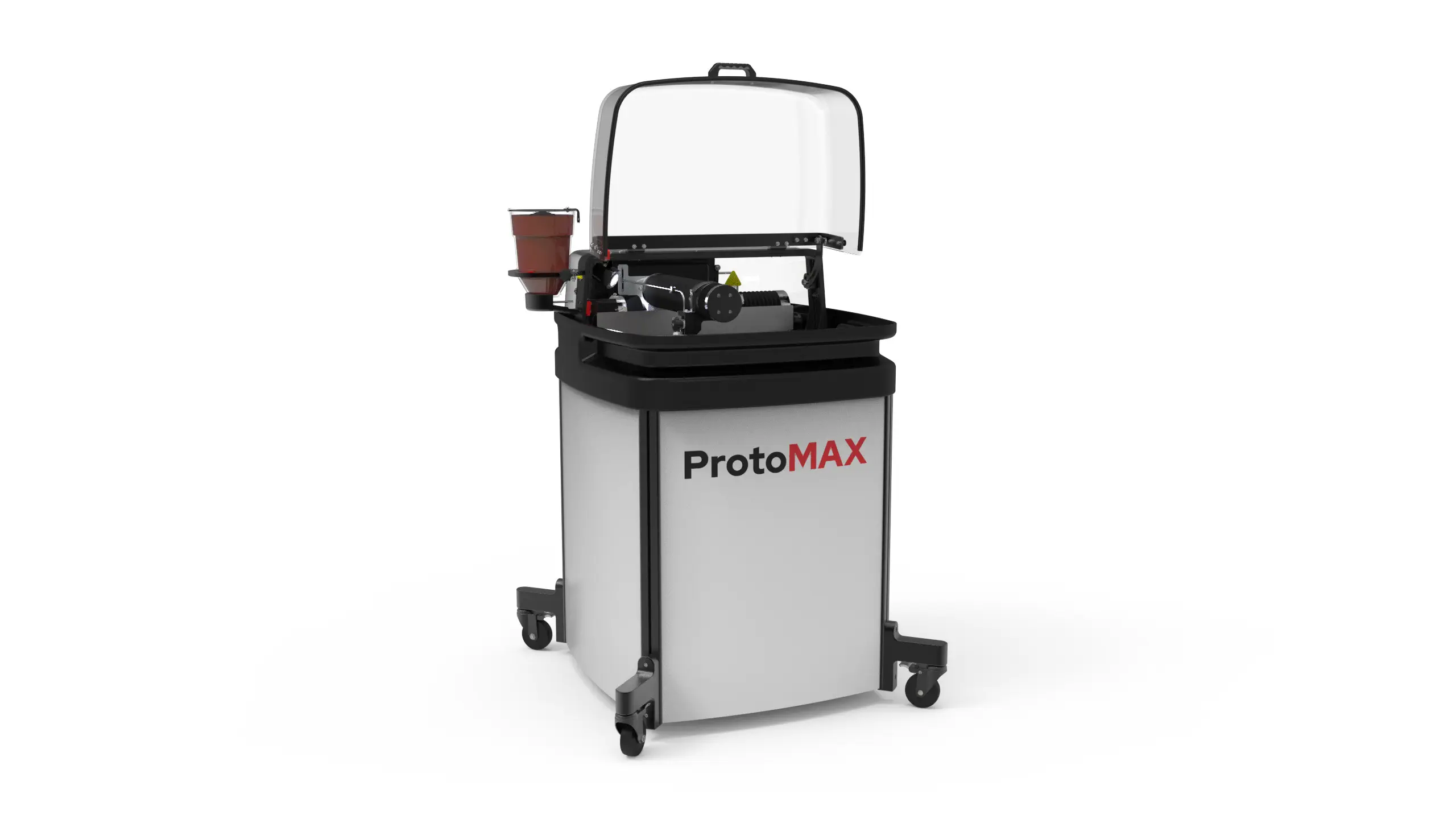

ProtoMAX

Designed and built alongside the revolutionary OMAX waterjets, The ProtoMAX is a compact, self-contained cutting system ideally suited for prototyping and low-volume cutting of almost any material approximately 1″ thick.

  • X-Y Cutting Travel 12″ x 12″
  • Z-Axis Travel 1″

Fanuc Robocut-a-C600IA

  • Maximum workpiece dimensions: 41.34″x32.28″x11.81″
  • Maximum workpiece weight: 2200 pounds
  • XY axis table travel 23.62″x15.75″
